Powder Processing & Particle Size Reduction Equipment

Custom Engineered Turn Key Powder Processing Systems From technology selection to customized system design, you can count on Fluid Energy for solutions to any fine powder particle sizing and processing challenge. We offer a full line of systems for fine grinding, flash drying or calcining, and classifying. We have the experience to create a powder processing system to suit your exact requirements.

Get More Information about our equipment by calling: (215) 721-2376, Ask for sales

Or send us an email using this form here >>

  • Ultra-Fine Grinding Jet Milling Systems (Production Scale)

    Horizontal, vertical and fluid bed designs for particle size reduction from .5 to 40 microns.

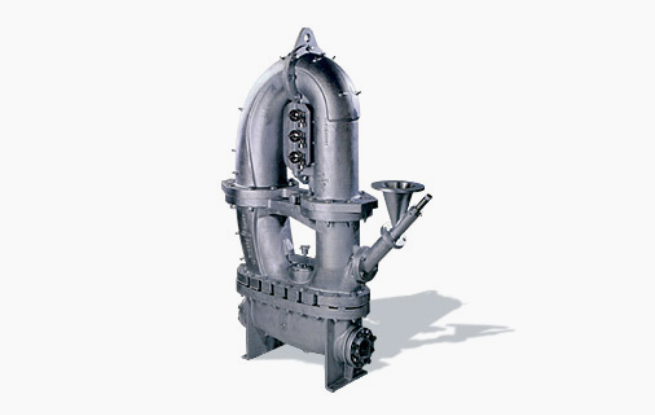

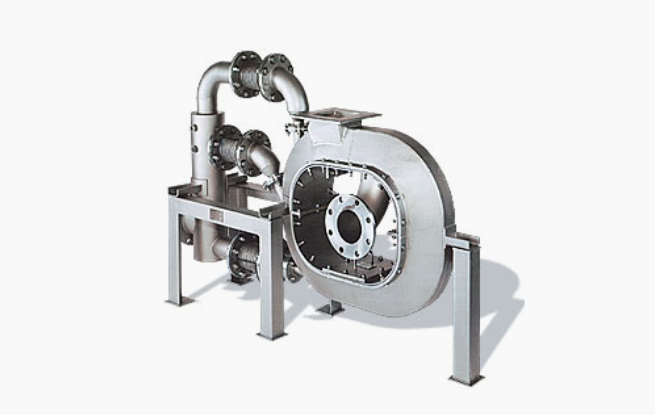

    Our Jet-O-Mizer (AKA vertical or torus jet mill), Micro-Jet (AKA pancake or micronizer machine) and Roto-Jet (AKA fluid bed) size reduction systems are capable of producing particle sizes from 0.5 to 45 microns without heat degradation. Sanitary systems are available for pharmaceutical applications and are suitable for autoclave or steam sterilization.
  • ROTO-SIZER® Particle Classification Systems – (0.5-45 Microns)

    Forced vortex air classifiers for particle classification from .5 to 45 microns.

    The Roto-Sizer is a forced-vortex air classifier designed to provide precise classification of fine powders. A specially engineered classification chamber and classifying rotor produce "cut" sizes down to 1 micron and produce yields of up to 92%. The classifier can operate as a separate system or it can be installed in-line with a mechanical or jet-milling operation.
  • Powder Drying System

    Single stage deagglomeration and drying to less than 0.1% moisture.
    ThermaJet is a proven line of compact, highly efficient flash dryers designed to dry and deagglomerate any wet solid, slurry, centrifuge or filter cake. Ideal for safe processing of even heat sensitive or reactive products, these dryers can also be used for flash calcining operations. With the success in developing new/preferred materials suspended in liquids this slurry dryer offers a cost effective solution to a significant challenge.
  • Laboratory Powder Milling Systems

    R&D cart systems for particle size reduction from .5 to 40 microns.

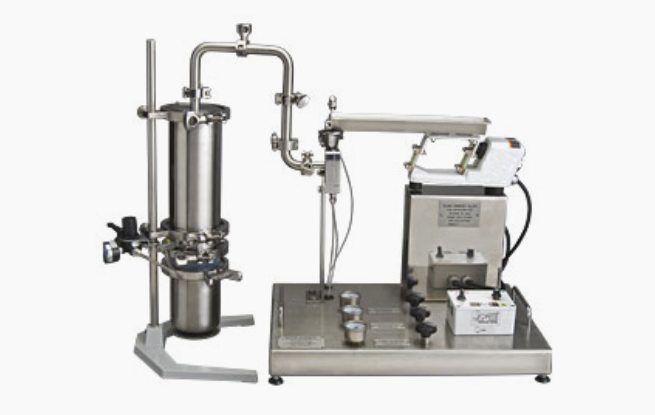

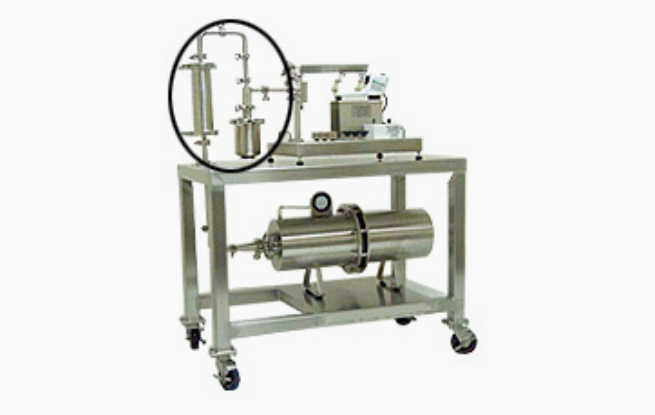

    Fluid Energy cart systems are designed to provide an R&D jet-milling system that can efficiently mill and collect your fine powders in three batch ranges all in one system. These units have been incorporated around the world and have proven to meet the needed distribution of sizes using particle size analysis and maintaining the purity of the material.
